Configure Splunk

Splunk is meant to aggregate real-time data for investigation, monitoring, and analyzing incidents. For educational purposes, students will use course-provided stagnant datasets to leverage Splunk tools and functionality. In order to fully configure your instance of Splunk, you'll need to complete the following in order.

Part I: Install Apps

Part II: Install Dataset

Part I: Install Apps & Add-ons

The Splunkbase library allows users to select an app or add-on to customize the functionality of Splunk. The dataset for MISA 532 requires the following applications, which are distributed and licensed separately and should be installed before using the dataset. The versions listed are those that were used to create the dataset. Different versions of the software may or may not work properly, so it's important to install the apps listed below exactly as they appear in the Splunkbase library.

Cisco Endpoint Security Analytics(CESA)(v4.0.7)
SA-cim_validator *Use Steps 7 & 8 to install this app.

Follow the directions below to install the necessary apps and add-ons. You will need to repeat the steps to install each app/add-on.

Step 1

Open Splunk

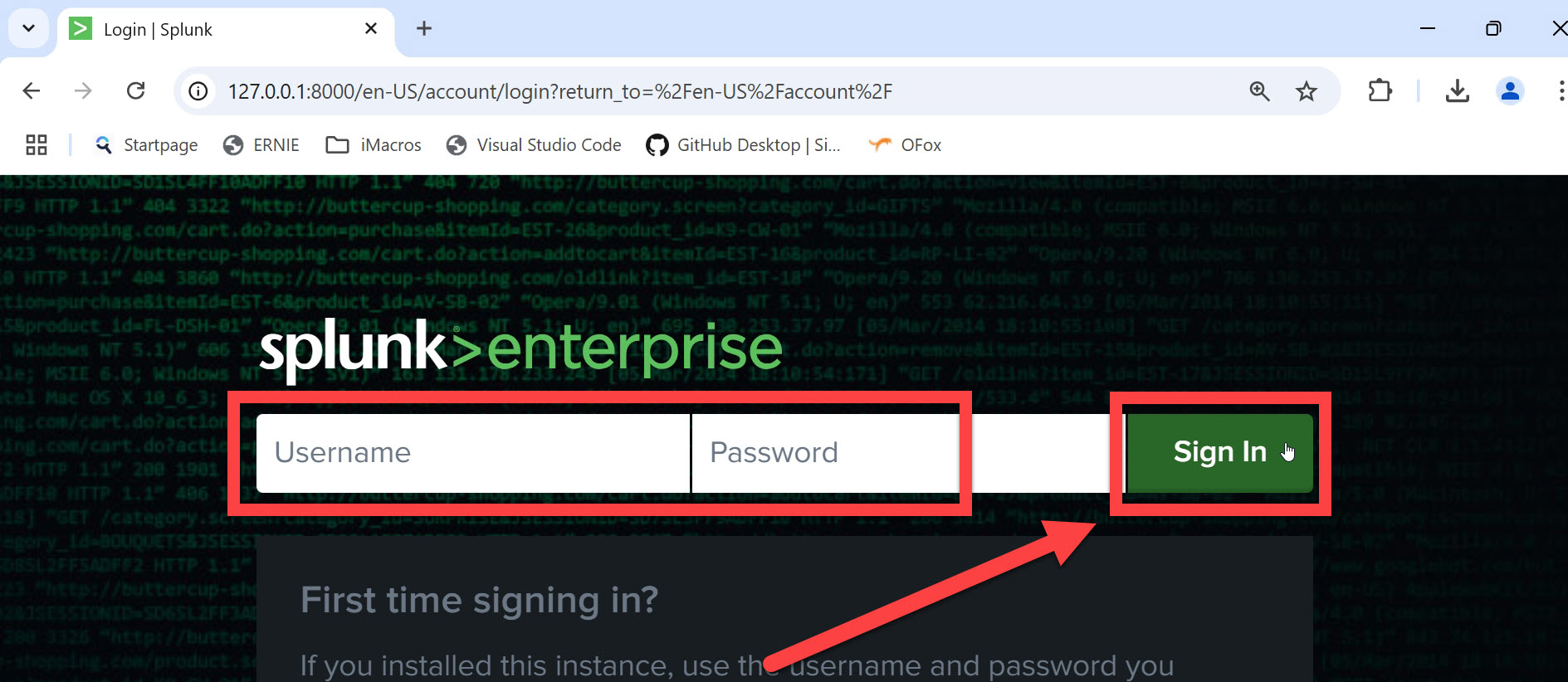

If not already loaded, open Splunk in your preferred browser (Chrome is recommended). Type http://127.0.0.1:8000/ in the address bar. You'll need to log in using the administrative credentials you made during Getting Started.

Note: After the 60-day or 15-day trial ends, your account becomes free. This means an administrative login is not required to access your instance of Splunk.

Step 2

Manage Apps

Select the icon to open the Manage Apps window.

Step 3

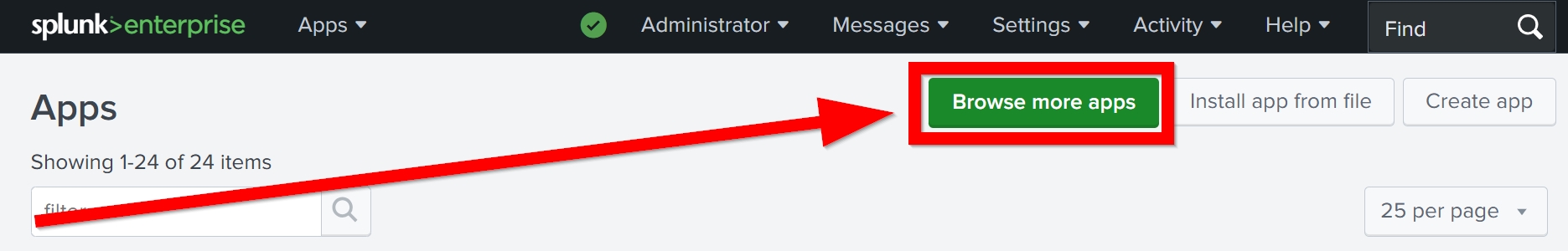

Browse More Apps

Select Browse More Apps. There will be apps/add-ons already listed from installing Splunk; you're encouraged to browse these apps as well to learn more about them.

Step 4

More Apps

Follow the steps below:

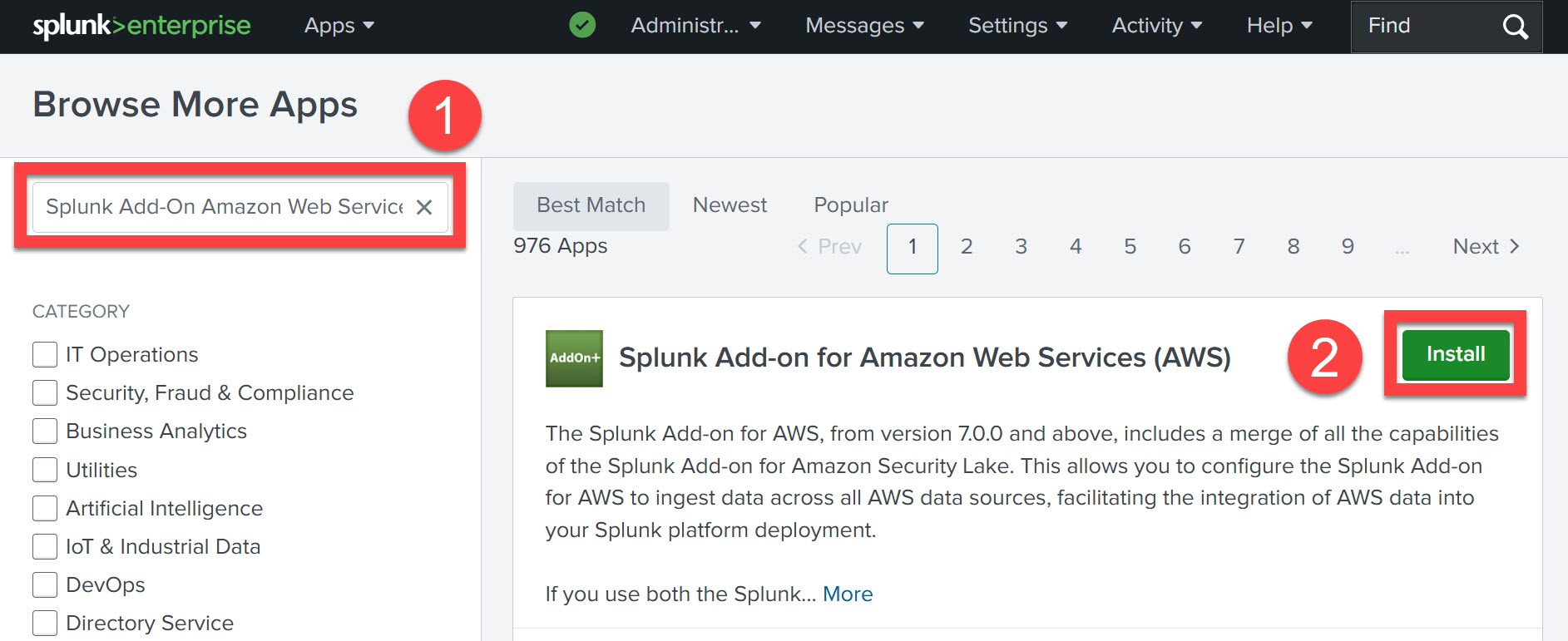

Copy the name of the app/add-on exactly as it shows in the list above and paste it into the search box.
Hit enter and select Install beside the appropriate app/add-on.

Step 5

Terms & Agreements

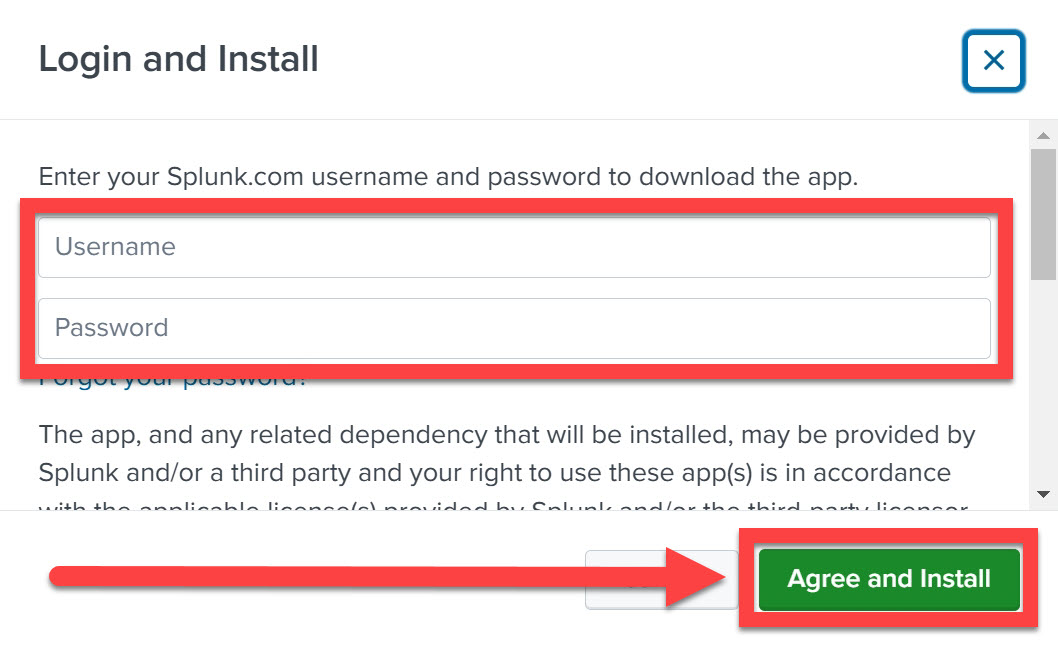

Upon selecting Install Splunk will prompt you to provide your Splunk credentials created when registering with Splunk’s site on the Getting Started page.

Enter your credentials, and select Agree and Install to proceed.

Note: Splunk may ask you if you want to restart now or later. Select Restart Later. You'll restart after installing all apps/add-ons.

Step 6

Repeat for all Apps

Repeat Steps 3-5 for all required apps and add-ons in the table, with the exception of SA-cim_validator. You'll install this in the next steps using a downloaded zip file.

Step 7

Download File

Download the SA-Cim_validator-master.zip file. Navigate to Splunk and select the icon to open the Manage Apps window.

Select Install app from file.

Step 8

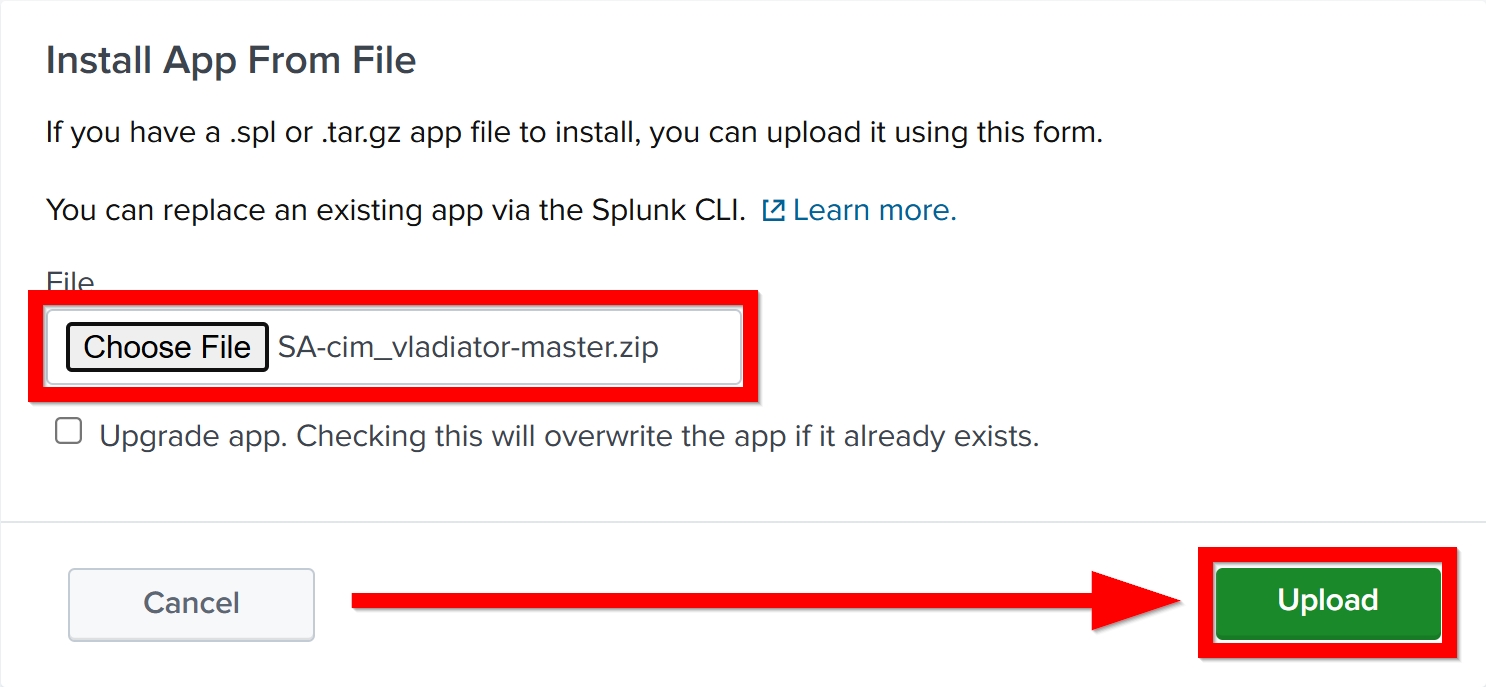

Choose File

Select Choose File to search for the SA-Cim-validator-master.zip. Then, select Upload to upload the zipped file.

Step 9

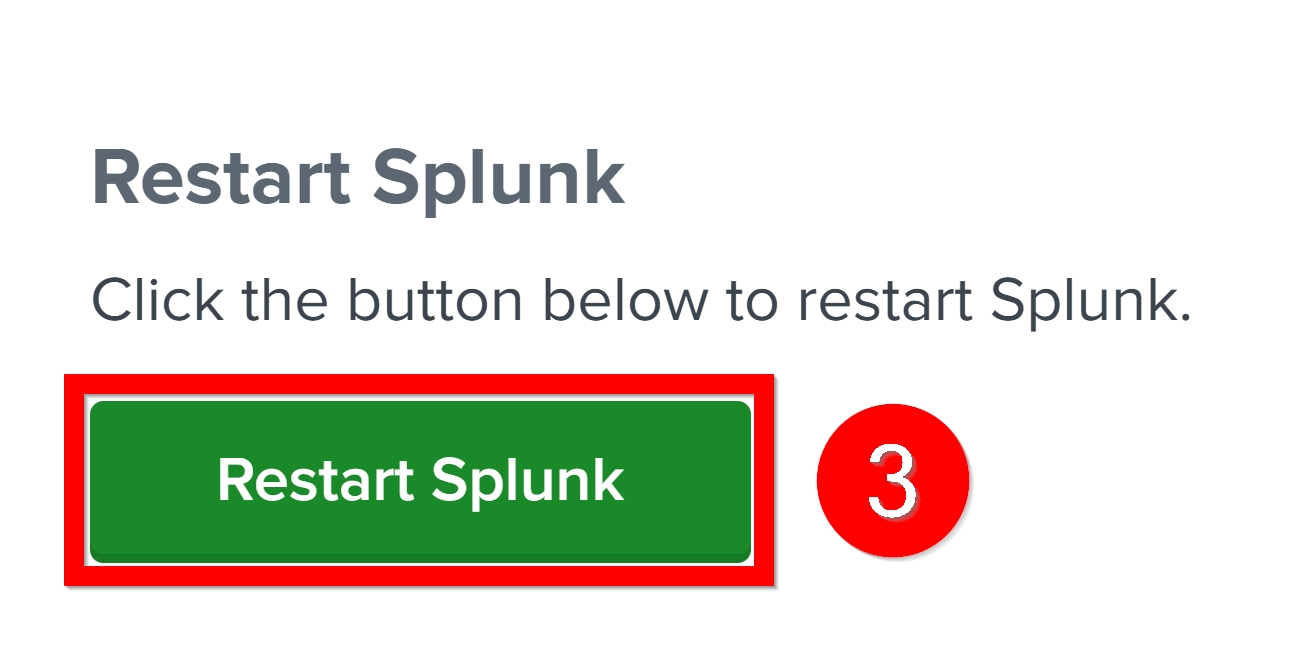

Restart Splunk

Once you've installed all the apps, you'll need to restart Splunk. To restart Splunk:

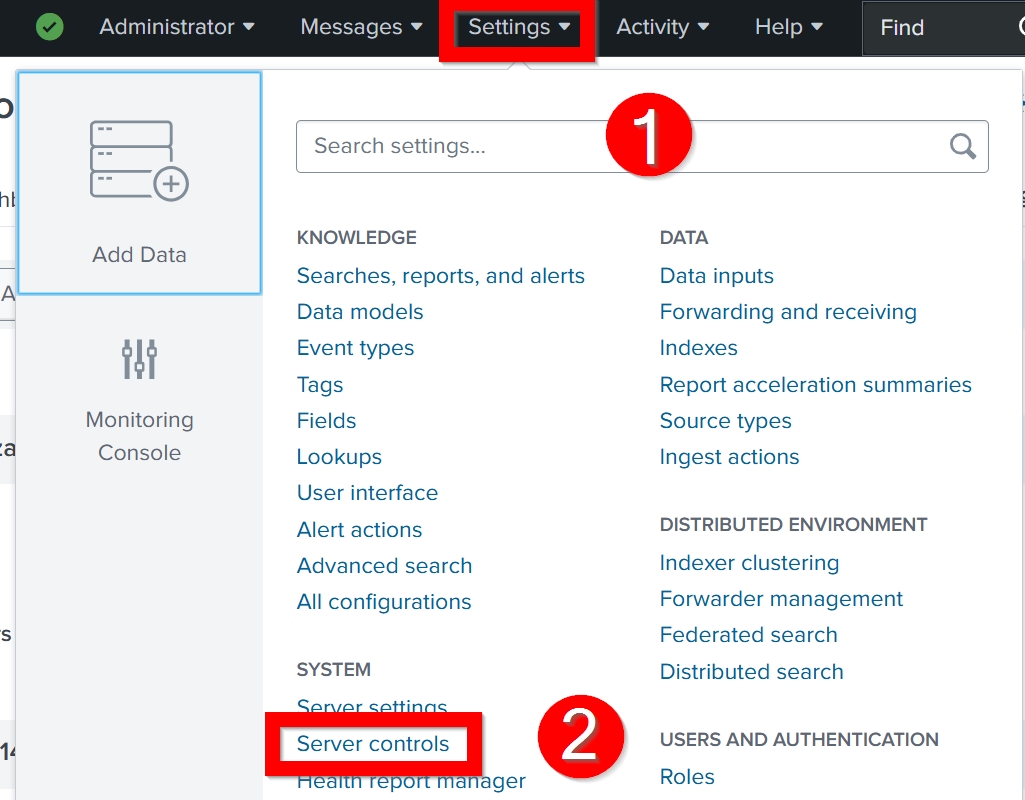

Open Settings from the Splunk navigation.
Select Server controls.
Select Restart Splunk.

Note: It may take time for Splunk to restart - do not close the browser until Splunk has refreshed with the login page.

Step 10

Proceed to Part II

Move onto Part II: Download & Install Dataset to complete Splunk configuration.

Part II: Download & Install Dataset

Step 1

Download Dataset

Dataset	Description	Size	Format	MD5 Hash
botsv3_data_set.tgz	Boss of the SOC (BOTS) v3 dataset	320.1-607MB	Pre-indexed Splunk	d7ccca99a01cff070dff3c139cdc10eb

Step 2

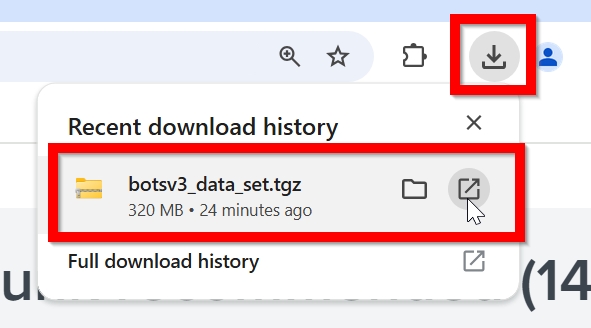

Locate & Open Download

Locate the download and select the Open folder location Symbol symbol to open the zipped file at its location

Note: This should open a unzipped folder with the same name as the .zip file downloaded.

Step 3

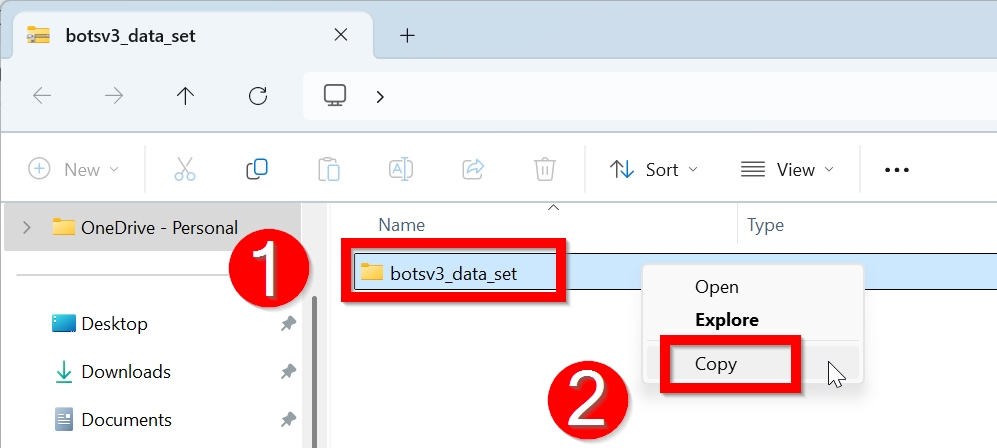

Copy Folder

Follow the directions below to copy the folder:

Select the botsv3_data_set folder.
Right click and select copy.

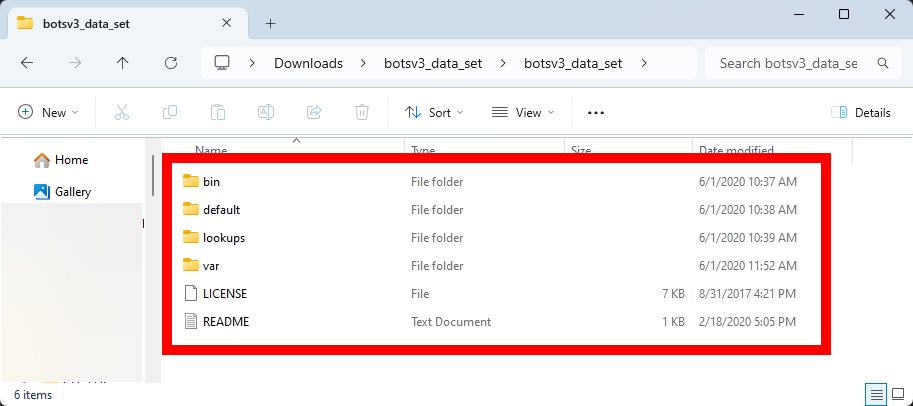

Important Note: Be sure the contents within the folder you are copying look like the image below. You may need to extract the data into another folder if the folders contents don't look like the image below. Name this folder the same as above. Use the images below and above to guide you.

Step 4

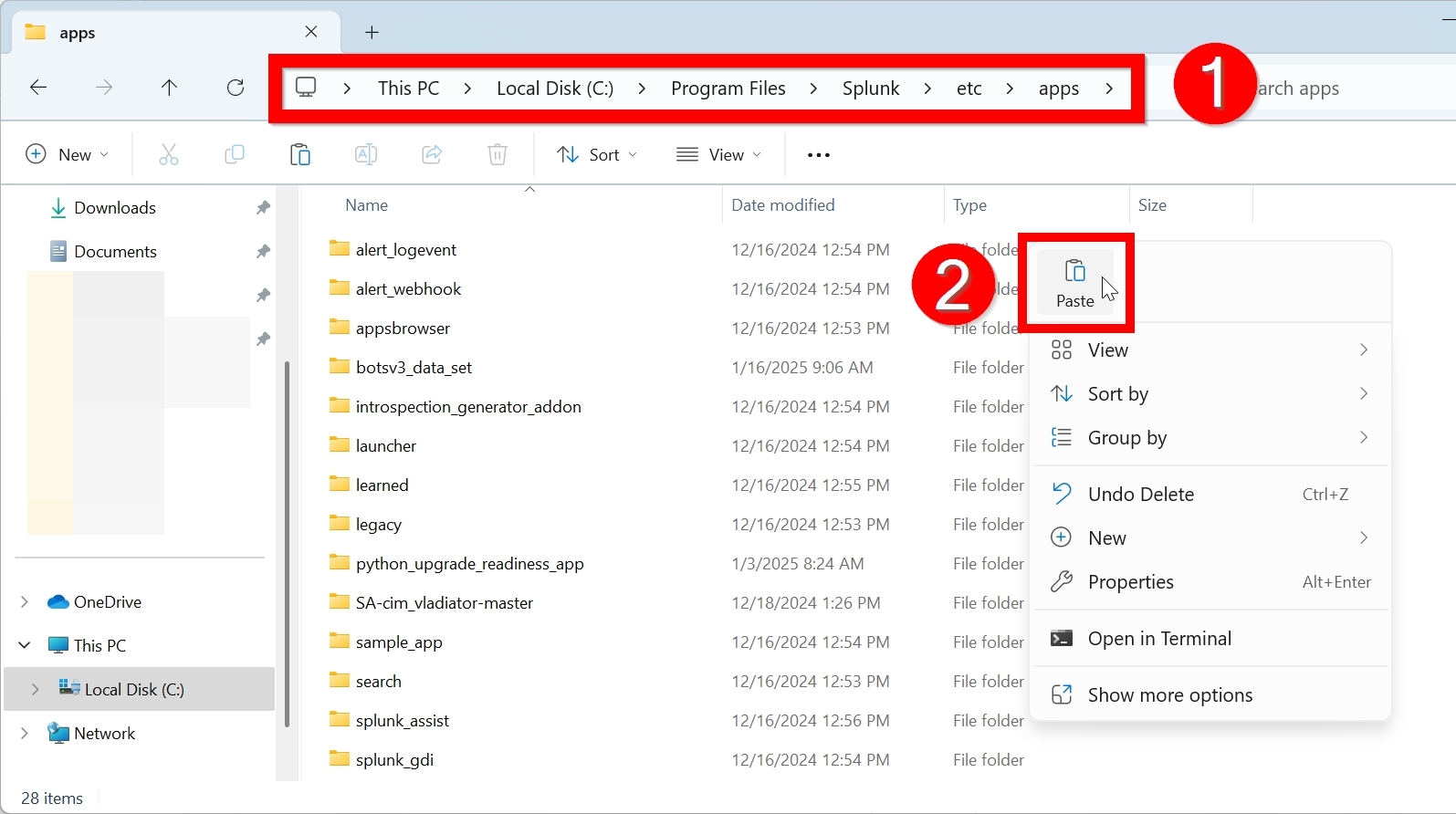

Paste Folder in Splunk Apps Folder

Follow the directions below to paste the folder:

Navigate to C:\Program Files\Splunk\etc\apps.
Right click and select Paste.

Step 5

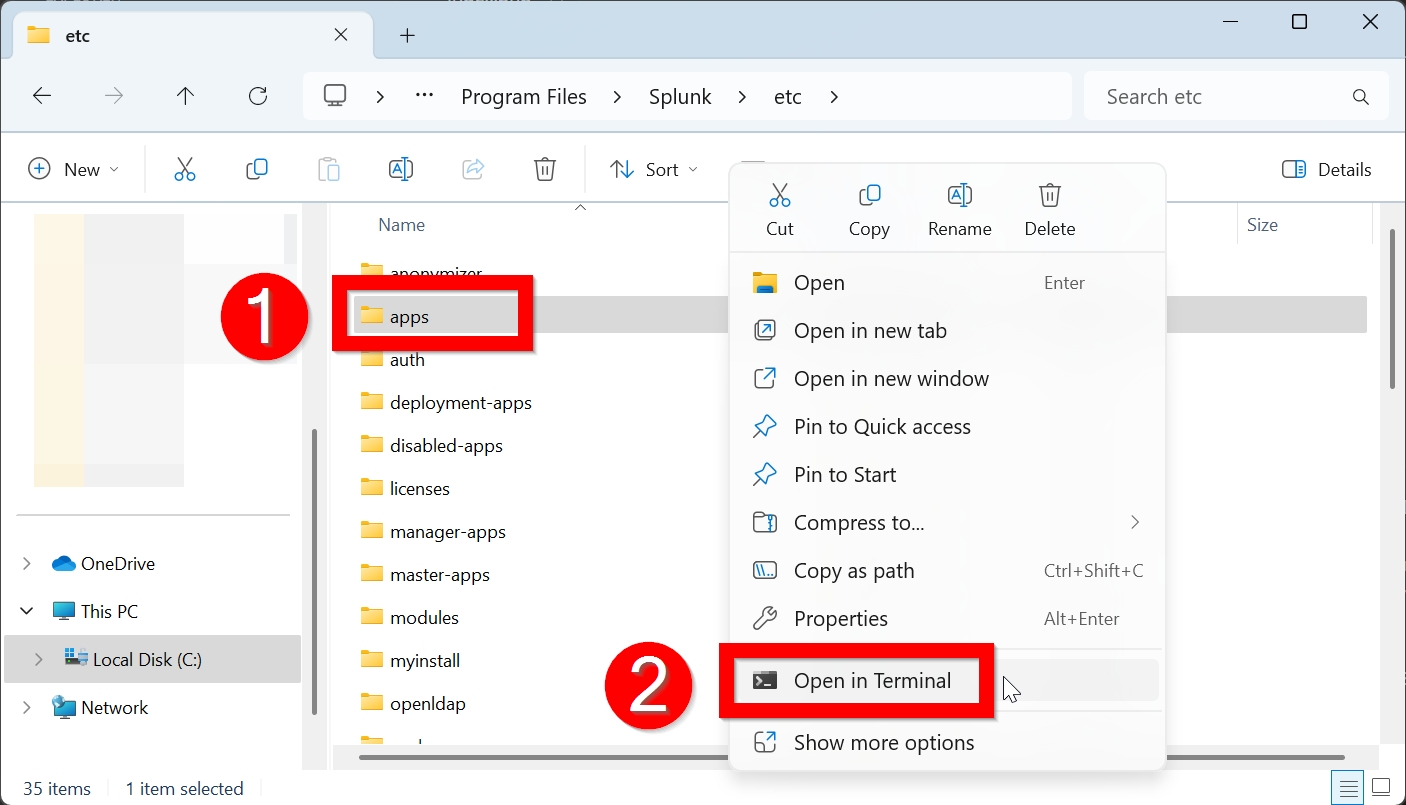

Navigate to apps Folder & Open Powershell

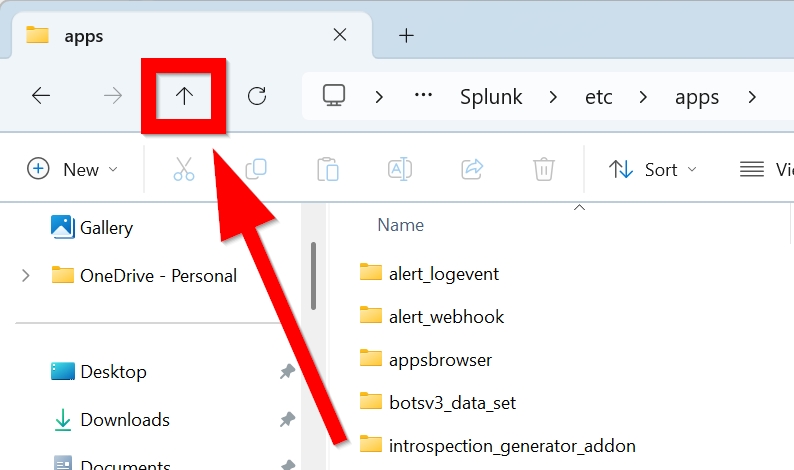

Select the symbol to navigate to the parent directory.

Follow the directions below to open powershell:

Select the apps folder and Right click.
Select option Open in Terminal.

Step 6

Verify File Integrity

You'll need to verify that the MD5 hash is the same as the one listed in the table in step 1. This is to ensure the data file is not compromised.

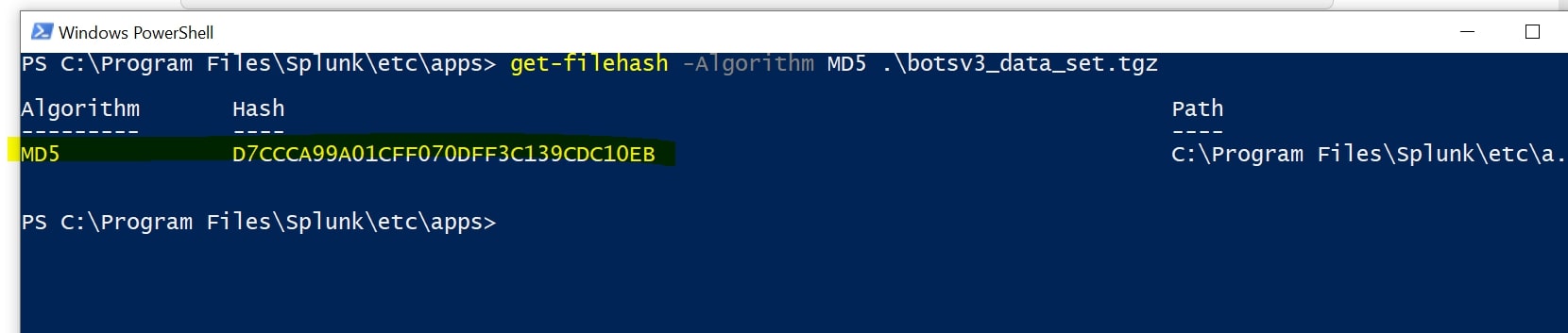

Type get-filehash -Algorithm MD5 .\botsv3_data_set.tgz and hit enter.

Note: If you make a typo/syntax error, this step will not work. Be sure to type it exactly as it appears above.

It should look like the image above. If your Hash value is different than d7ccca99a01cff070dff3c139cdc10eb, it means you are using a different version that may or may not be legitimate/corrupted. Delete the file and try again; contact your instructor if the problem persists.

Note: The directions for checking MD5 hash are for Windows machines. If you are using a Mac or a Linux, visit the vendor's website for support.

Step 7

Restart Splunk

Once you've installed all the apps, you'll need to restart Splunk. To restart Splunk:

Open Settings from the Splunk navigation.
Select Server controls.
Select Restart Splunk.

Note: It may take time for Splunk to restart - do not close the browser until Splunk has refreshed with the login page.

Step 8

Search & Reporting

Open Splunk and navigate to Search & Reporting.

Step 9

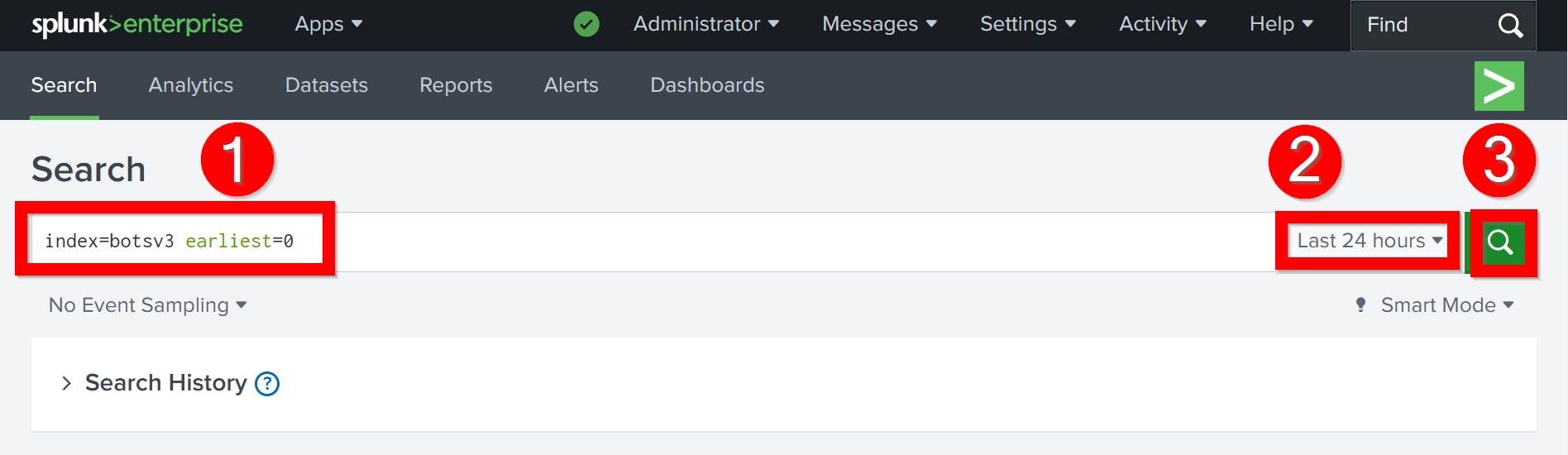

Add Events

Type the following in the search textbox: index=botsv3 earliest=0
Select the time frame you wish to search (last 24 hours, last thirty days, all time, etc.)
Select to begin searching for events.

Note: If you cannot produce any events from the data set, this is typically because the data is not located in the right structure within the apps folder. Once you've confirmed that the folders are in the correct structure (see steps 2 & 3), reach out to your instructor for guidance.

Step 10

Finish

Your Splunk instance is configured! You can now complete course work, including accessing Splunk Fundamentals I resources. Visit the Additional Resources page to learn more about Fundamentals I, dashboards, and other Splunk resource documentation.
